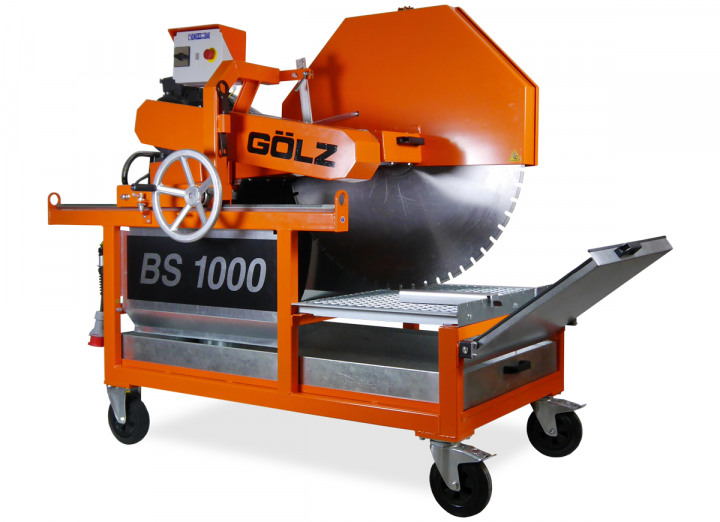

BS1000

Powerful block saw for the long term use on the jobsite
_______

Cutting length 600 mm
Blade-Ø 1.000 mm
Cutting length 420 mm

  • Torsion free chassis with 4 crane eyes
  • Cutting depth adjustable by manual lever
  • Sprung cutting head for cutting depth adjustment • Professional water tube
  • Adjustable angle stop
  • Cutting head with steel bearing rollers
  • 4 transport wheels, 2 with parking break
  • Removable water tub, zinc coated

Specifications
GÖLZ BS1000
Motor 3-phase, 400 V,
50 Hz, 32 A, IP 54
Power 7,5 kW (10 PS)
Max. cutting depth 420 mm
Max. blade size 1000 mm
Arbor hole 60 mm
Cutting length 600 mm
Shaft speed 990 min-1
45° miter-cut No
Water pump electric
Blade flange size ø 160 mm
Transport wheels yes
Cutting table (LxW) 610 × 840 mm
Dimensions: (LxWxH) 2000×1100×1550 mm
Weight 280 kg
Order-Nr. 0282 900 2020
Accessories
Spare water pump 0282 650 0179
